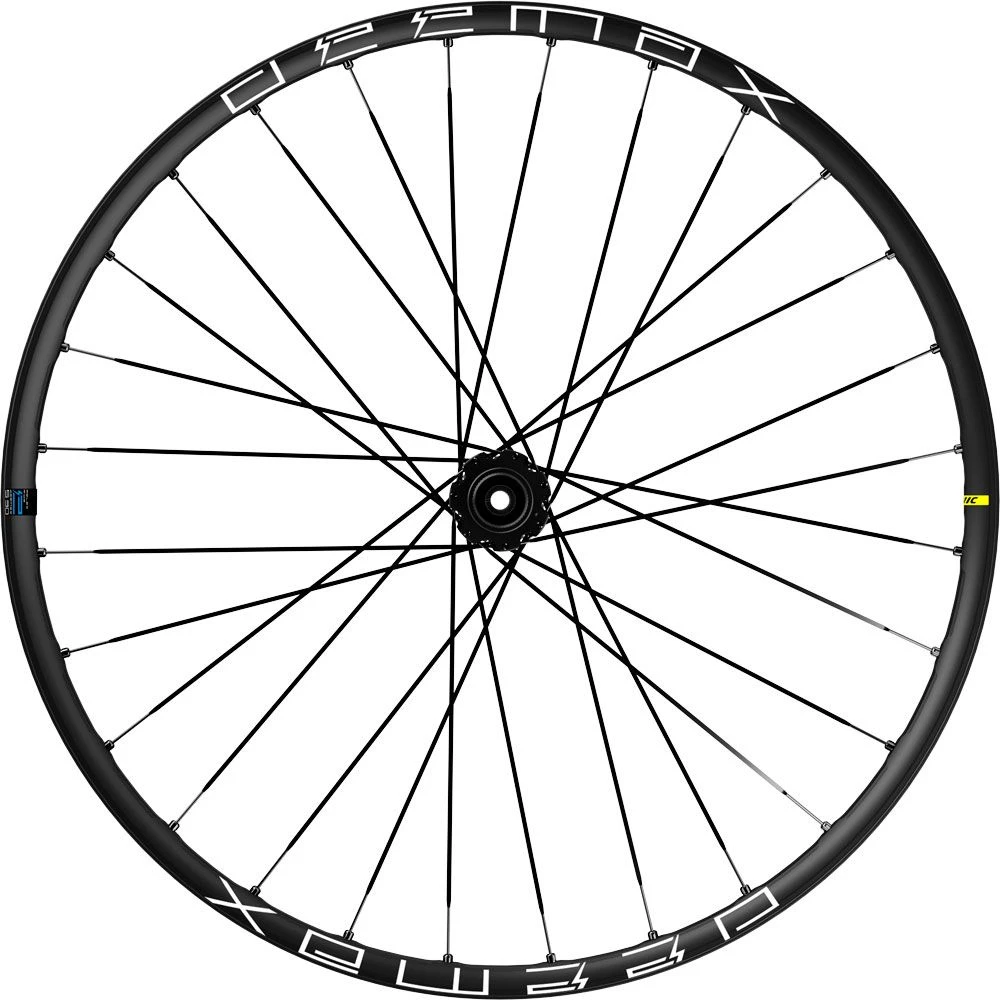

Mavic E-Deemax S 30 29″ Boost Rear Wheel Ruedas | Bike-Discount

The durable Mavic E-Deemax aluminum wheels are designed and engineered for the specific requirements of E-MTBs. The tubeless wheels are equipped with Pinch Flat Protection, which effectively increases the puncture resistance of the sidewalls, and thanks to the Fore technology, they do not require rim tape. This is complemented by sophisticated bearing technology in the form of the Infinity hubs.

---

Features – Mavic E-Deemax S 30

• Reduced risk of flats, stronger rim profile
• PFP (Pinch Flat Protection) rim sidewalls have a wider contact surface at the top of sidewall, which significantly minimizes the risk of tire cuts and punctures
• Super strong rim (ASTM 5) gives you the confidence to push your limits on rough terrain
• Increased traction, stability and control
• 30mm (internal) rim is optimized for lower tire pressure to maximize your grip, efficiency and comfort on the trail
• Engineered for the added torque of E-bike motors with 28 threaded three-cross spokes that further boost lateral stiffness
• Black Shield treatment protects rims against impacts and scratches
• Rim profile is optimized for modern trail tires from 2.35 to 3.0″
• Ride tubeless with the most user-friendly tubeless system
• No tube means less friction, better efficiency and grip
• Fore technology: leaving the upper rim bridge intact boosts the stiffness and durability of the rim, no tape needed
• No tape makes it easy to mount and change tubeless tires
• QRM Auto bearing preload technology
• SUP welding technology

Product features

• Use: E-MTB / Downhill
• Model: E-Deemax
• Wheel size: 29″
• ETRTO: 622×30
• Rim type: Clincher
• Tubeless: ✔
• Hub: Infinity Hub
• Freehub system: Instant Drive 360
• Freehub: SRAM XD
• Bearings: Auto adjust sealed cartridge bearings (QRM Auto)
• Rim inner width: 30mm
• Hub axle system: 12 x 148mm Boost thru axle
• Spoke type: straight pull, flat, double butted
• Spokes: 28 crossed 3, contactless
• Brake type: Disc brake
• Brake system: Disc 6-Bolt
• Recommended tyre sizes: 65 bis 81mm (2.35″ bis 3.0″)
• Valve hole: Presta / SV Ø 6.5mm
• ASTM Catergory: 5 – Gravity riding focused on the descent
• Recommended system weight max: 180kg (Rider + Bike + Equipment)

Material

• Rim: Maxtal Aluminum / S6000 Aluminum
• Hub: Aluminum
• Freehub: Steel
• Spoke: Steel
• Nipples: Fore integrated Aluminum

Color

• black

Weight (manufacturer information)

• 1110g

---

Scope of delivery

• 1 Mavic E-Deemax S 30 29″ Boost Rear Wheel
• 1 UST valve and accessories
• 2 Spokes
• 1 Multifunctional wrench
• 1 Fore spoke wrench

---

Technologies

Fore Technology
Mavic’s Fore technology is the latest achievement of the traditional French manufacturer. It’s the result of years of research and combines low weight and improved tubeless assembly with increased rigidity and ease of repair. 10% lighter and stronger than traditional wheel designs, the Fore Technology incorporates spokes that fit directly into a co-molded metallic insert that avoids the need to drill the upper rim bridge. This negates the need for rim tape, makes for easy repairs, and saves an additional 30g per rim.

Infinity Hub
Equipped with the all-new Infinity Hub that harnesses a trinity of hallmarks that enhance power transfer, durability, and compatibility. Easily serviceable without the need for specialized tools, the Instant Drive 360 freewheel technology ensures quick engagement along with high rigidity and durability and offers automatic bearing preload adjustment (QRM Auto). Designed for compatibility and ease of use, the Infinity Hub can be converted to all major freewheel drive options and axle dimensions.

UST Tubeless Technology
Traction, control and lightweight. The UST concept improves traction, control and comfort while reducing inertia and flats. Tubeless constructions are lighter, reduce the rolling resistance and provides more comfort.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high quality sealed cartridge bearings. On QRM wheels, they feature double sealing (2RS or LLU) together with tight C3 internal clearance.
